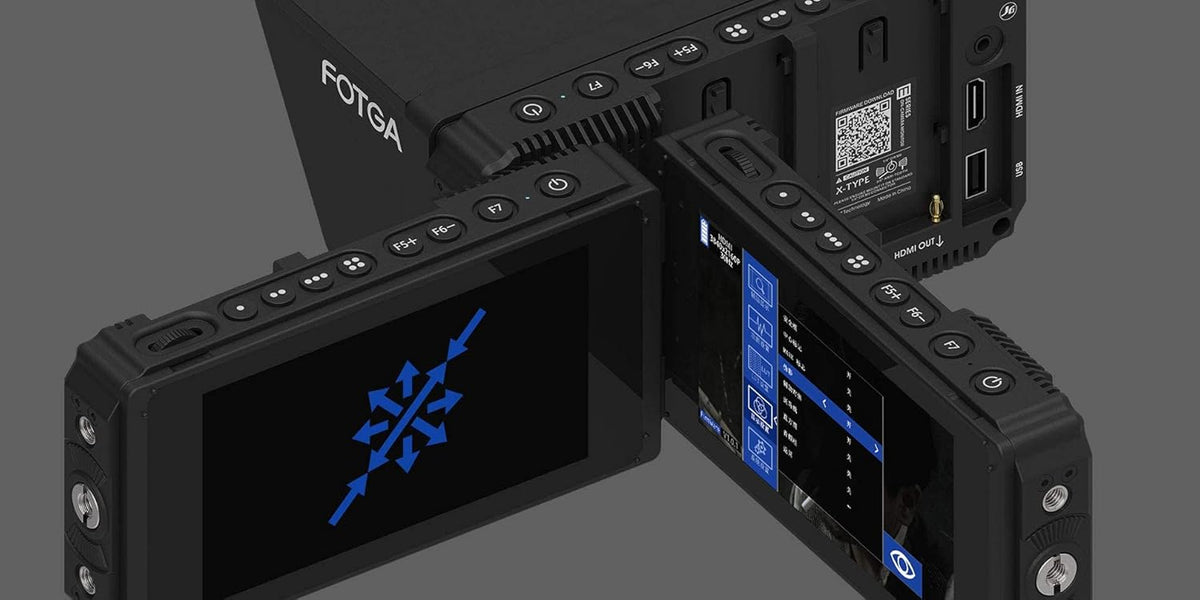

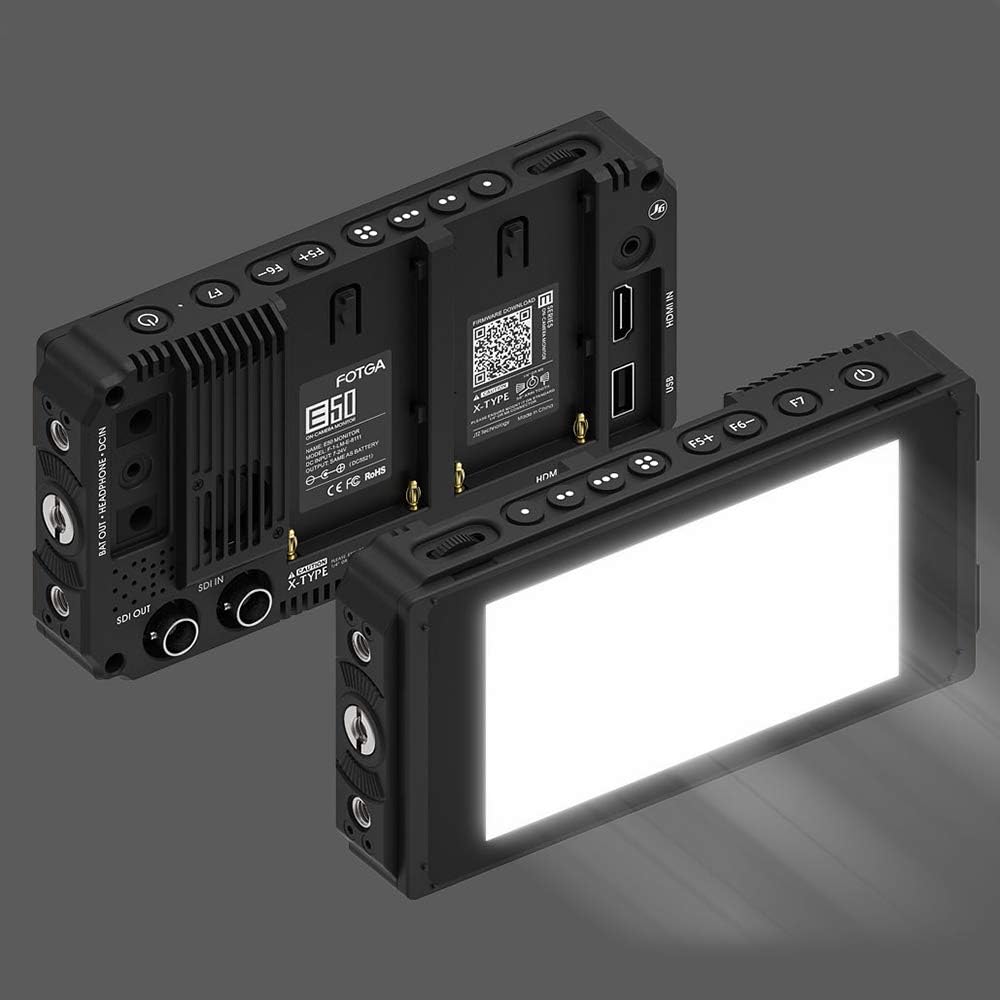

5 Inch IPS DSLR Camera Field Monitor Touch Screen 4K HDMI O26603
5 Inch IPS DSLR Camera Field Monitor Touch Screen 4K HDMI O26603
This E50 series Professional on-camera monitor is made of aviation aluminum and high-strength engineering plastics.Lightweight but strong.comes with silent operation button to facilitate your operation.It has all the features you want.

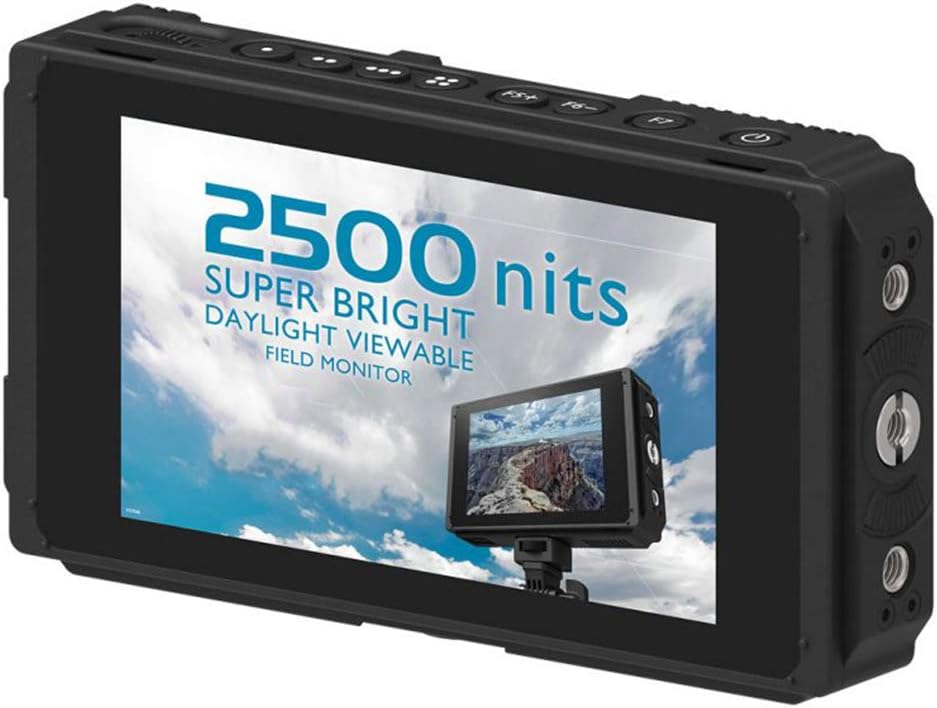

5 Inch IPS 2500nits daylight visibility Touch Screen,the simple gesture and swipe, you can access thefullmenu,allwaveform,vector,histogram,3D LUT,anamorphicmode,zebra,peaking,false color,Monochrome,center markett,safety marker,etc. Free zoom and drag the images with fingers.
Supports 4K HDMI Input/output.3.5mm headphone output.USB port for firmware upgrade.Multiple connecting holes (1/4',3/8' ,M6 and cold shoe connector).

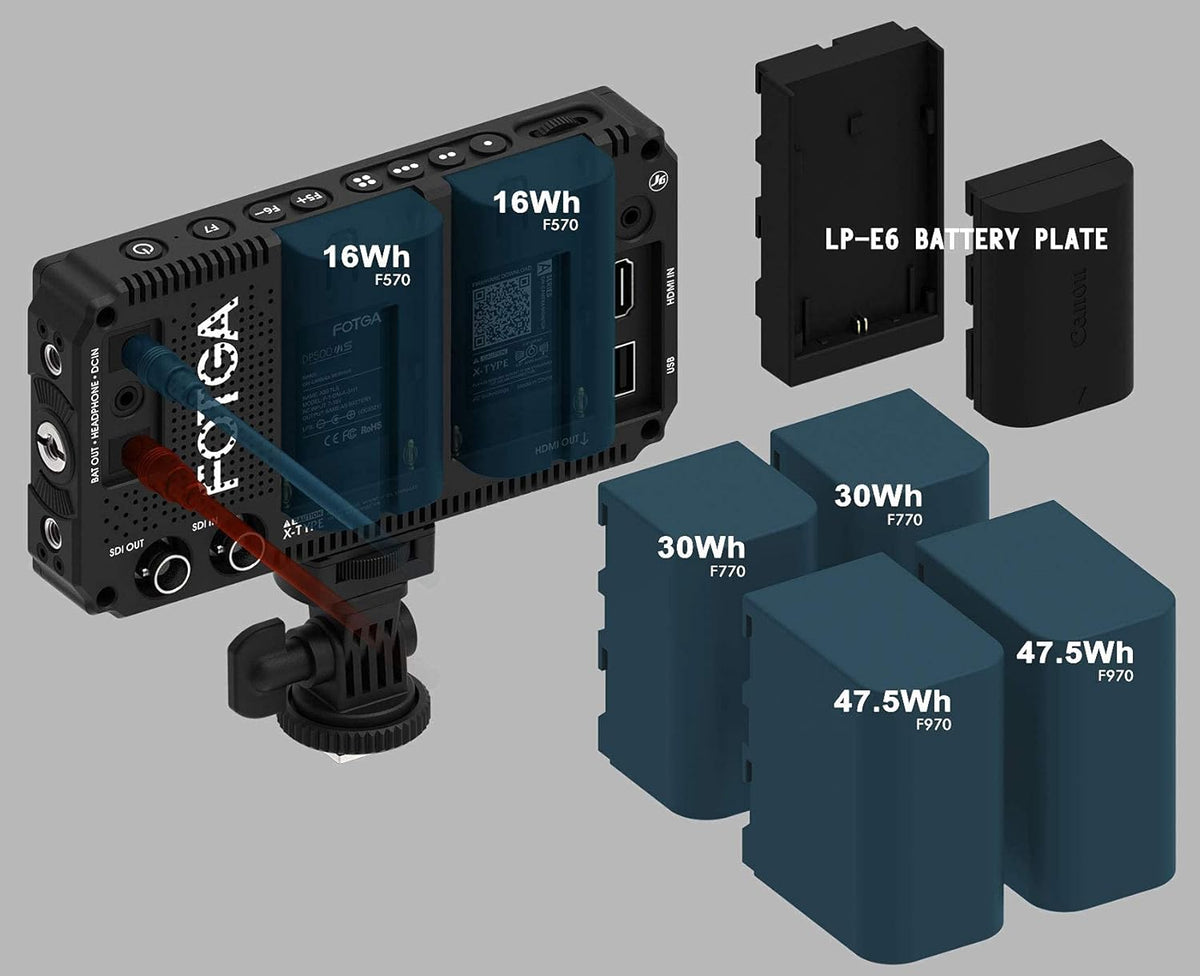

The monitor is designed with Dual battery compartment for NP-F NP-FM/QM batteries,and this would extend your working time greatly.You can also use LP-E6 battery (battery plate for LP-E6 need to buy separately).When power by NP-F or LP-E6 battery or a dummy battery,there is also a battery output for power your camera directly from monitor.
E50 series monitor includes 2 models: E50S (HDMI+3G SDI input/output) and E50 (only support HDMI input/output).Both these 2 models provide your with a choice.
E50 5 Inch Ultra Bright 2500nits On-Camera Touch Screen Field Monitor 3D LUT,Wavaform,Vector,4K HDMI,Dual battery,Daylight Visibility,all features you want for a monitor.all scopes,waveform,vector,histogram,3D LUT,zoom,anamorphic mode,zebra,peaking,false color,Monochrome,center markett,safety marker,edge enhance,etc.
Uninterrupted Power Supply
Dual NP-F battery plate for providing uninterrupted power supply.
No battery power consumption during standby.
Flexible Control Methods
2 control methods:
Touch screen control and physical light buttons control.
Support short-cut setting.

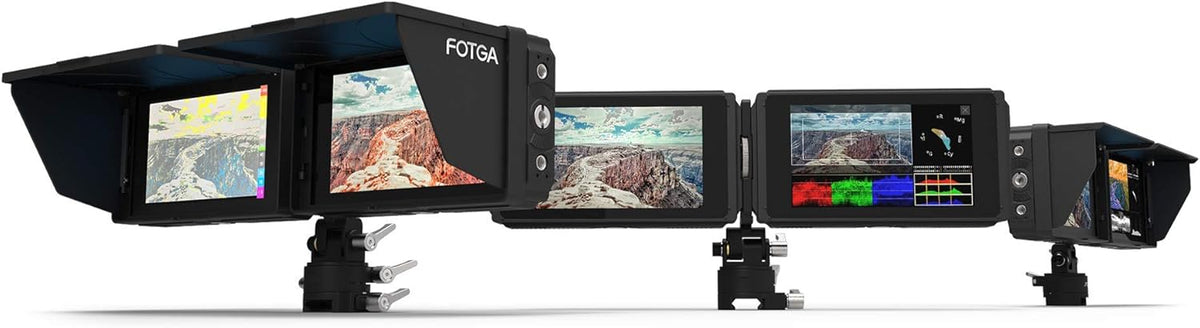

Professional Extending Accessories
Professional accessories and extension accessories.
Quick-release snap-on sunshade hood,X-type mount for more accessories,etc.
Efficient Cooling System
Optimized structure and efficient quiet cooling system design.
Features:

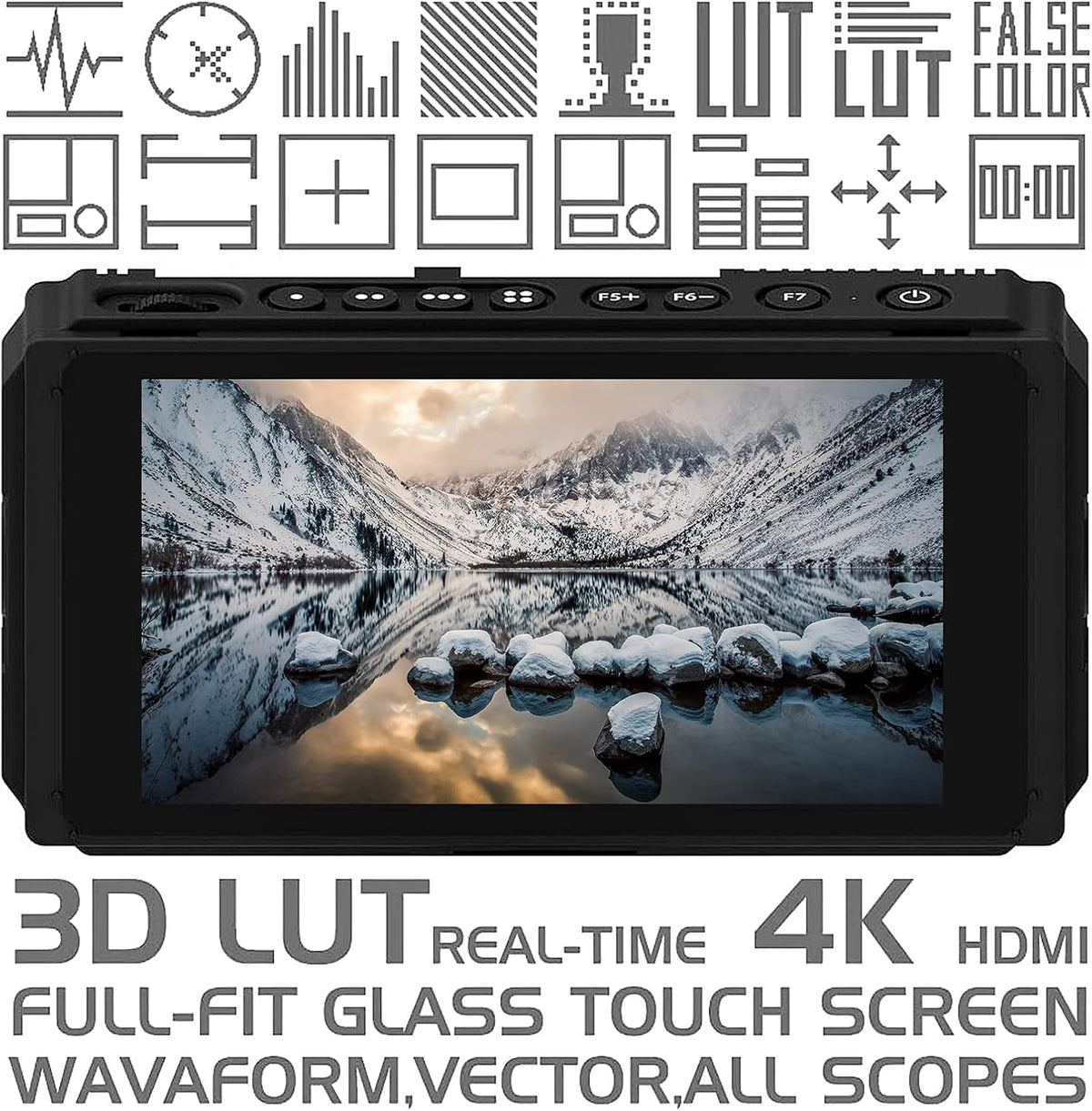

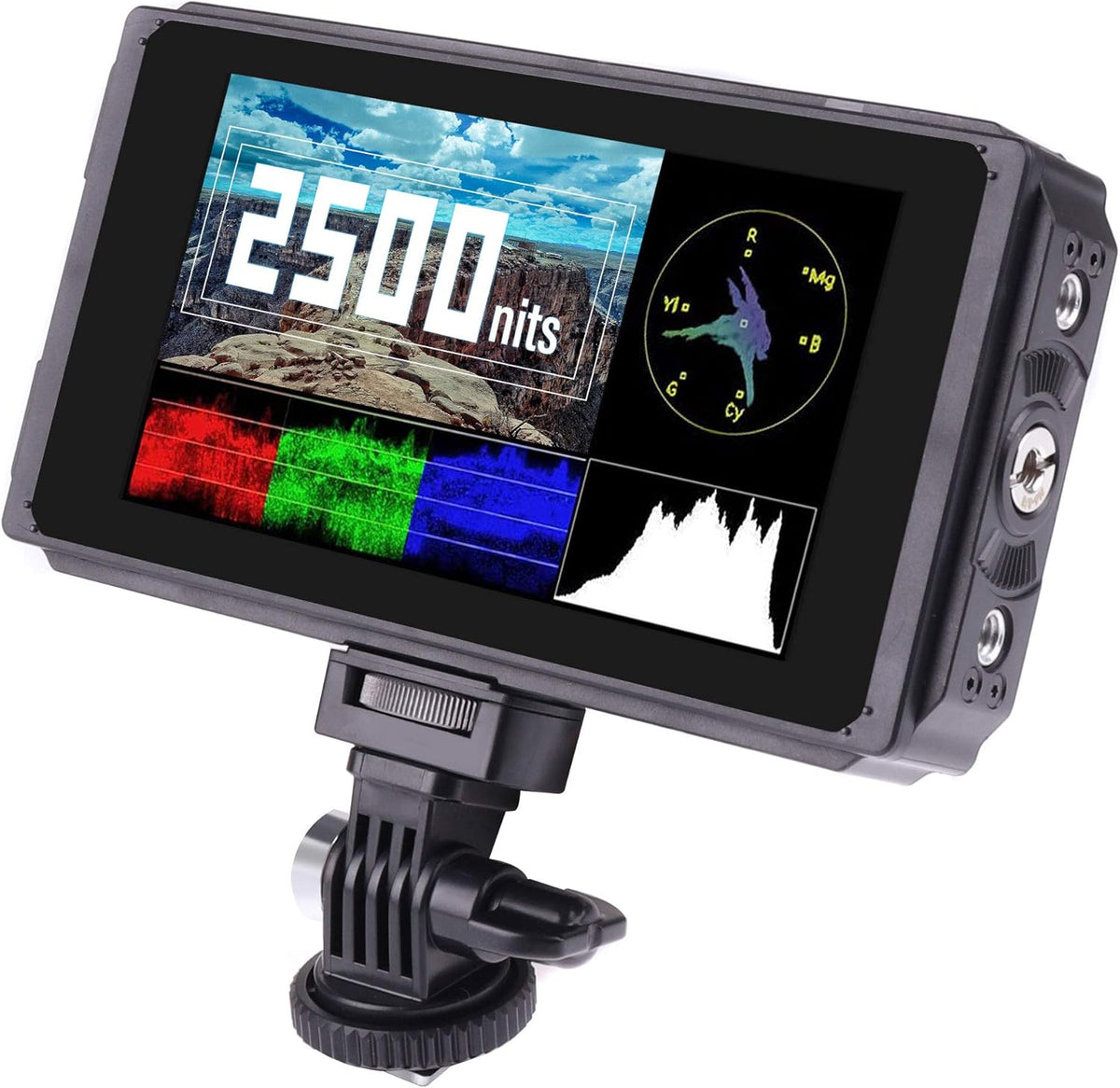

All SCOPES:High-precision RGB/YUV/Y/waveform,vector,Y/RGB histogram,all scopes display.Provide more accurate and visual on exposure and color controlling.
3D LUT:Advanced image processing chip and technology.1D,3D LUT movie color calibration and real-time preview.
Screen Type:IPS LED backing 2500 nits,1000:1.
Viewing Angle:Full 180°.
Weight:298g(E50 HDMI),318g(E50S HDMI+SDI).
Size:162mm(L)x87mm(W)x29mm(H).
Power input:7-24V.
Power consumption:9-15W.
Input connector:HDMIx1,SDIx1,USB(TYPE-A)x1.
HDMI input/output:4K DCI,4K,1080P,1080i,720P,720i,ect.
SDI input/output:3G SDI,1080P,1080i,720P,720i,ect.
USB input:FAT32
Package includes:
1 x E50 field monitor
1 x sunshade hood
1 x adjustable bracket
1 x cold shoe adapter
1 x HDMI cable
1 x 3/8'-1/4'adapter
3 x 3/8'-M6 adapter
