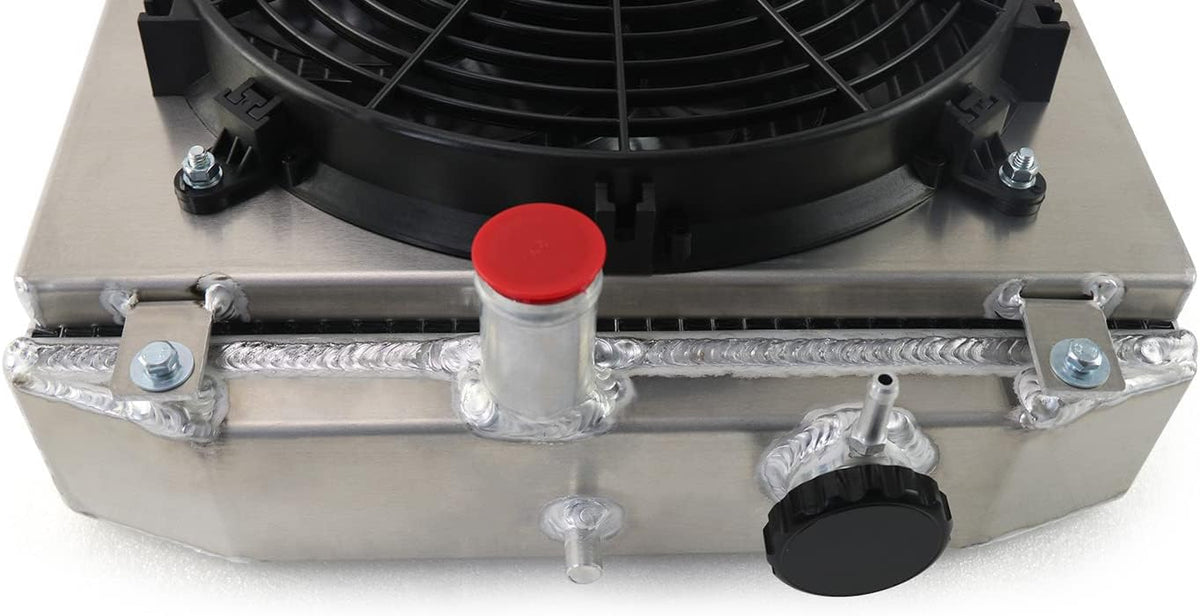

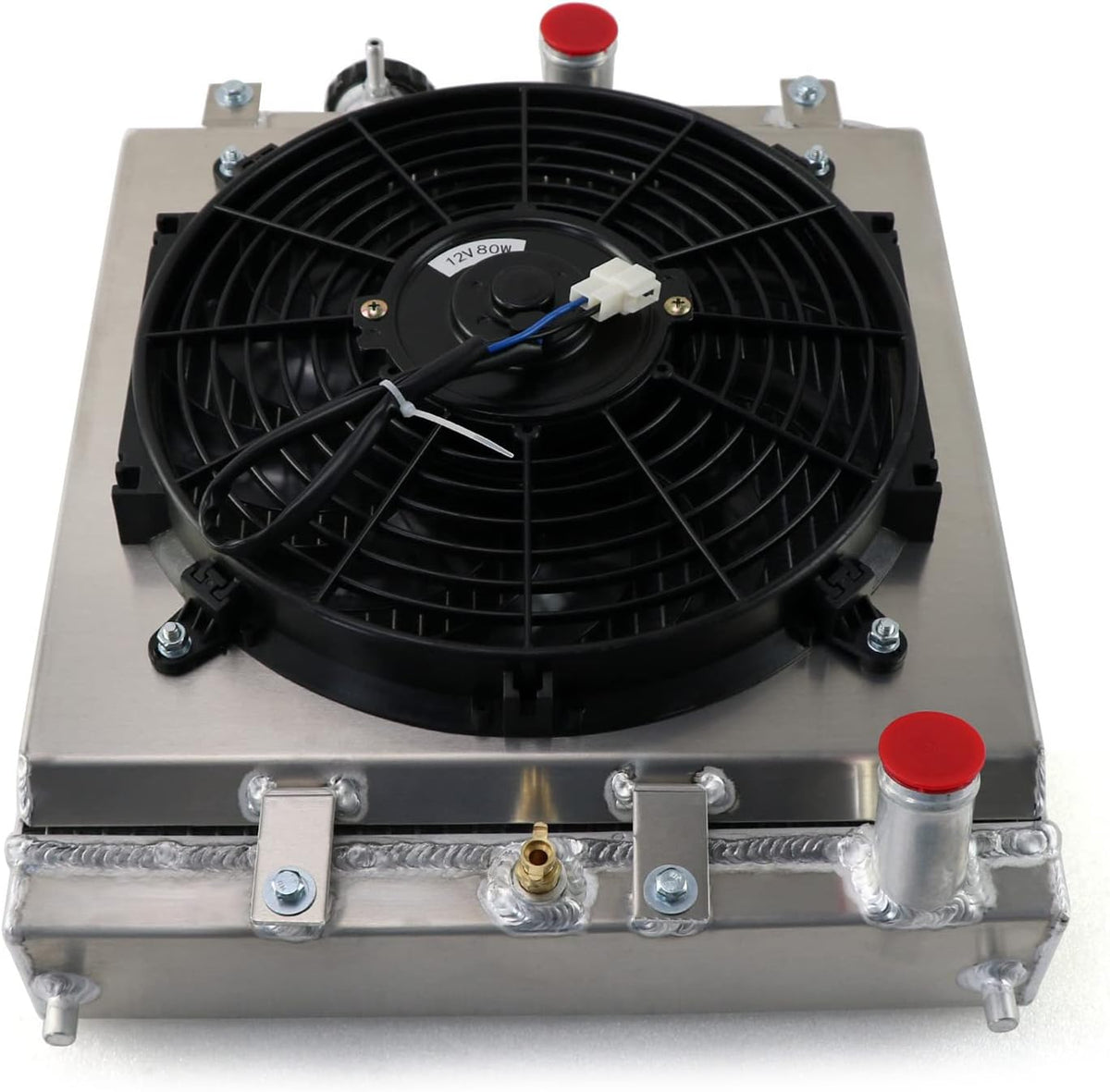

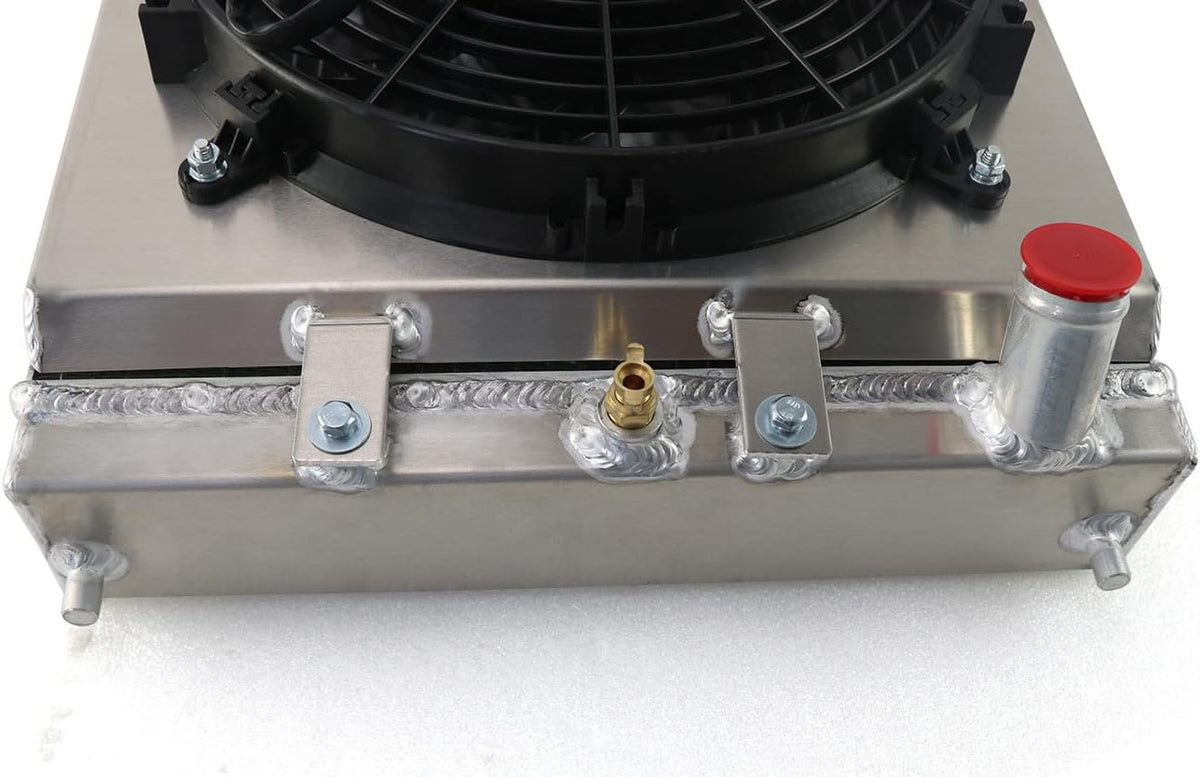

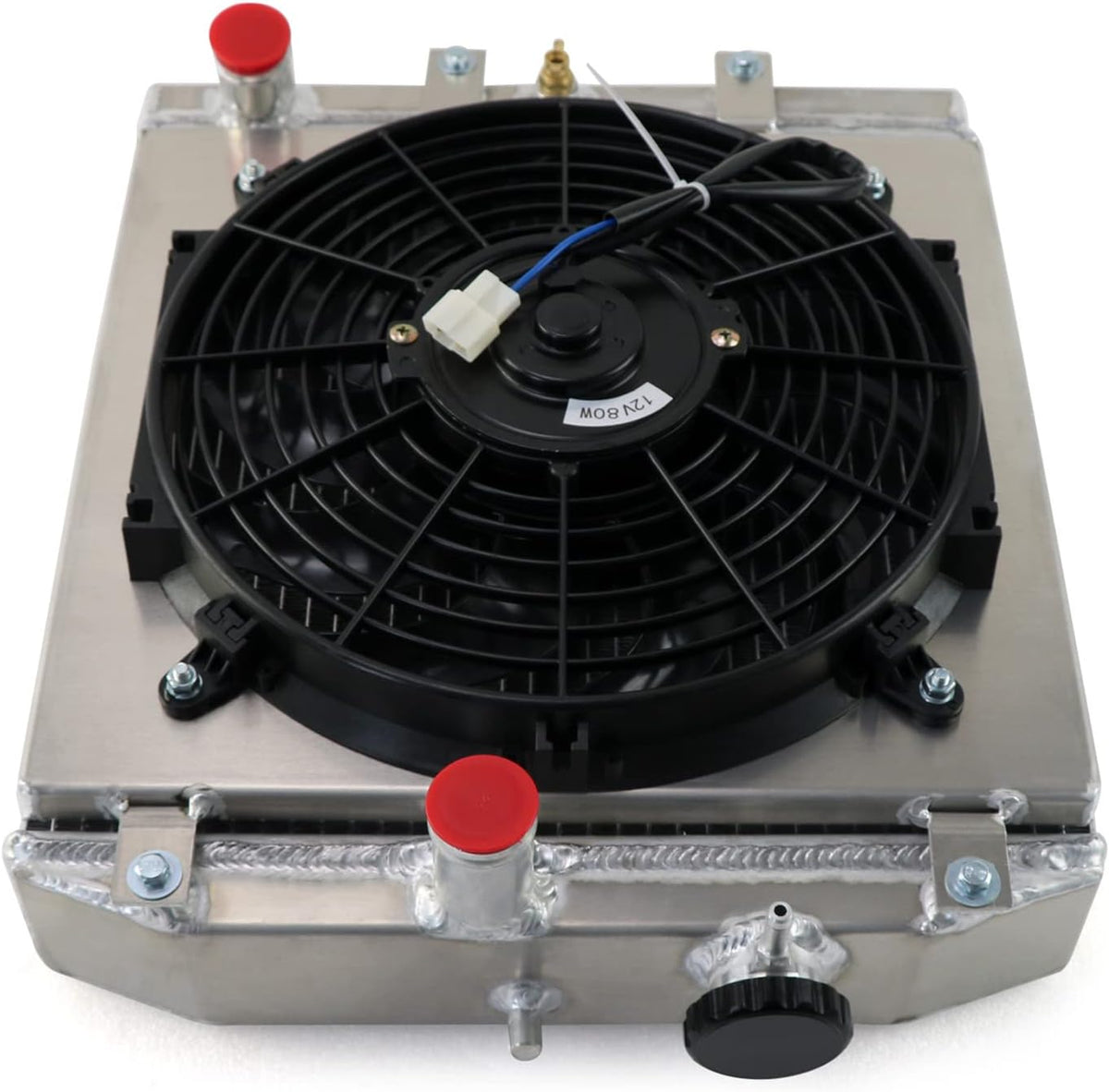

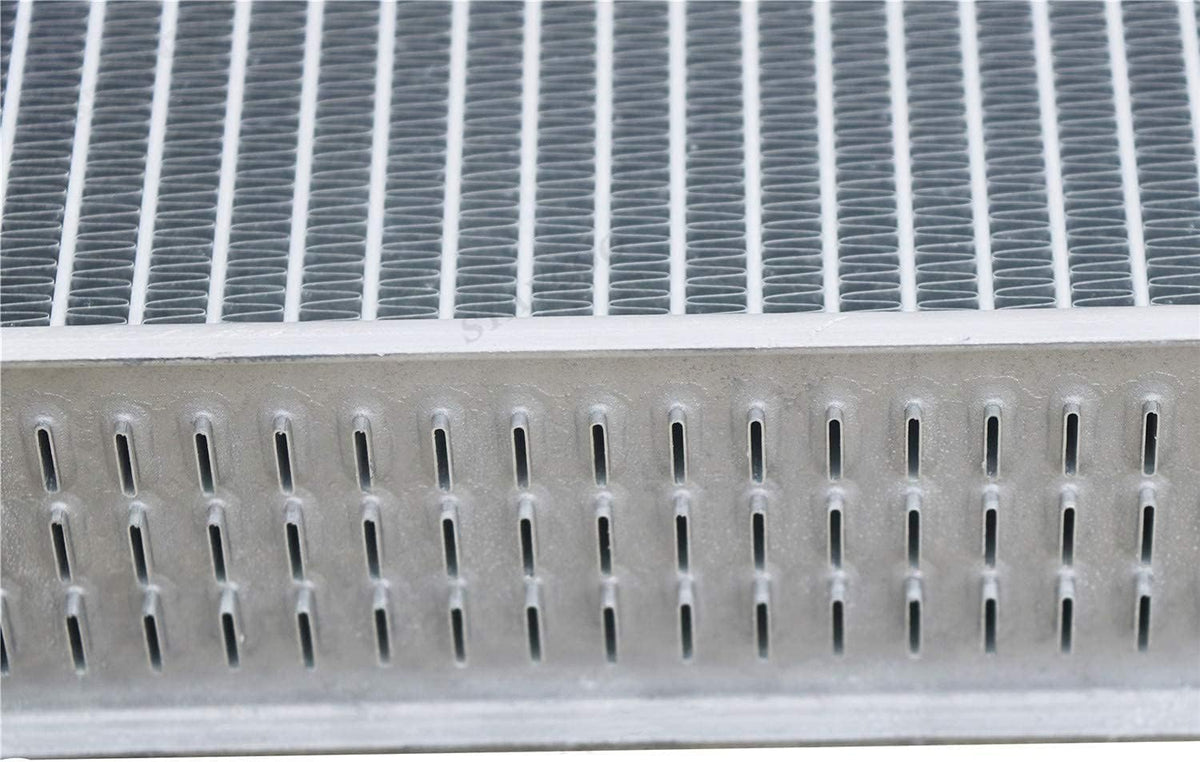

Aluminum Radiator with Shroud Fan and Relay Q663886
Aluminum Radiator with Shroud Fan and Relay Q663886
Core Size: 13.8’’ x 14.1’’x 1.73’’; Overall Size: 18.3’’ x 14.5’’ x 4.6’’
Inlet: 1.25’’ at top center; Outlet: 1.25’’ at bottom passenger side
Efficient fluid temperature reduction and superior heat dissipation
Vehicle test-fitted prior to market release, ensuring perfect drop-in fit
Shroud fan provides protection and extra heat heat dissipation for the radiator

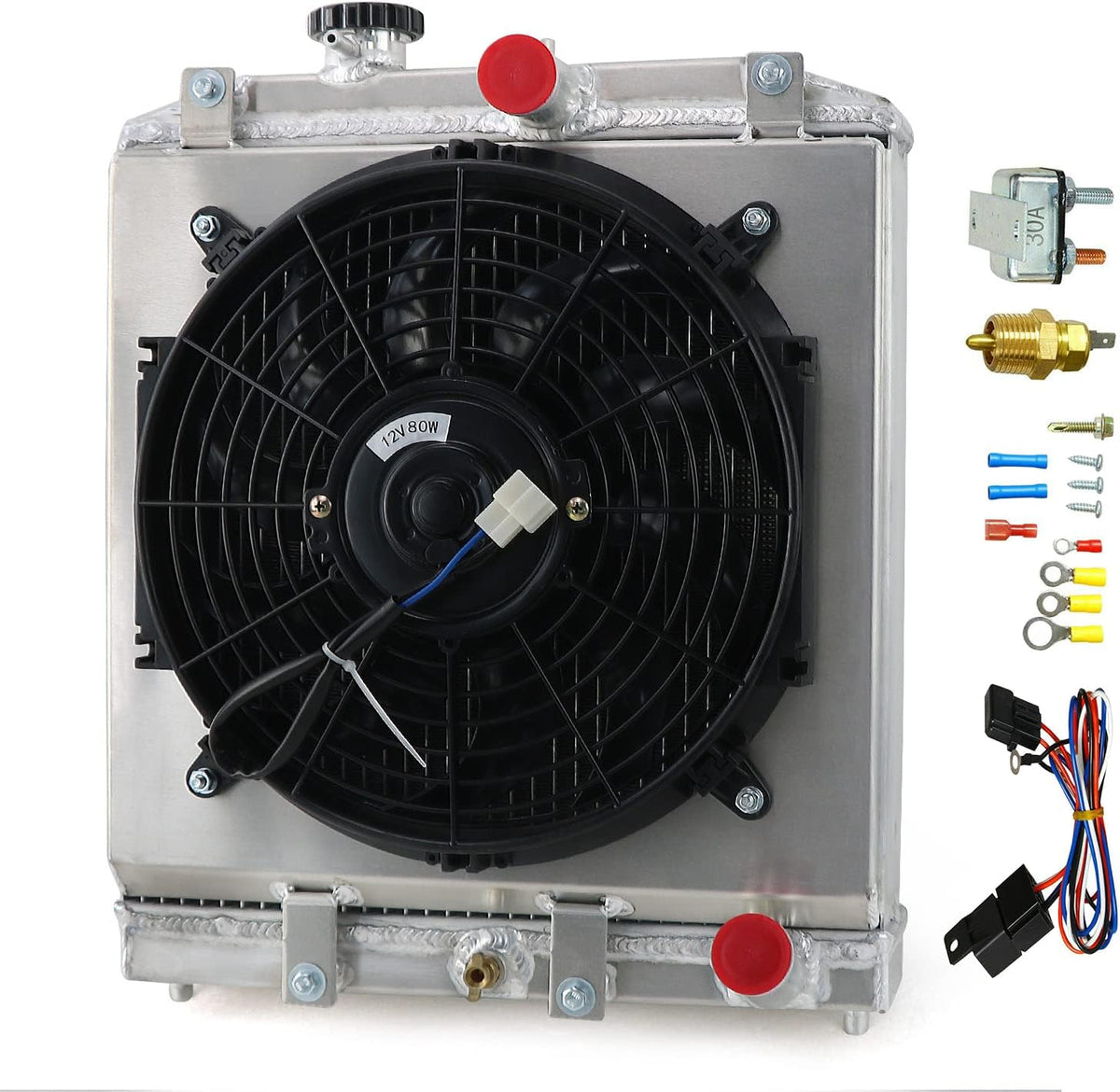

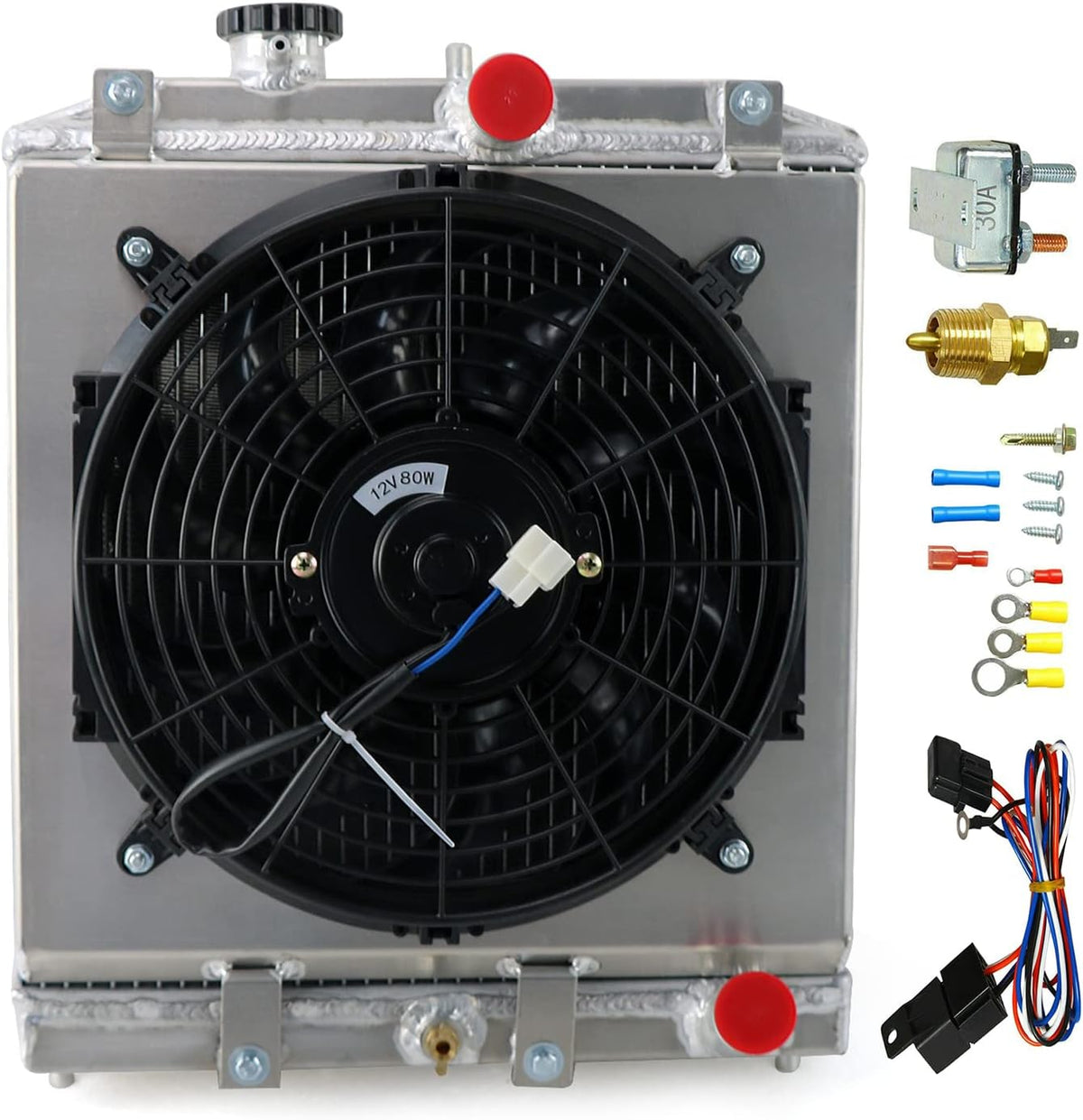

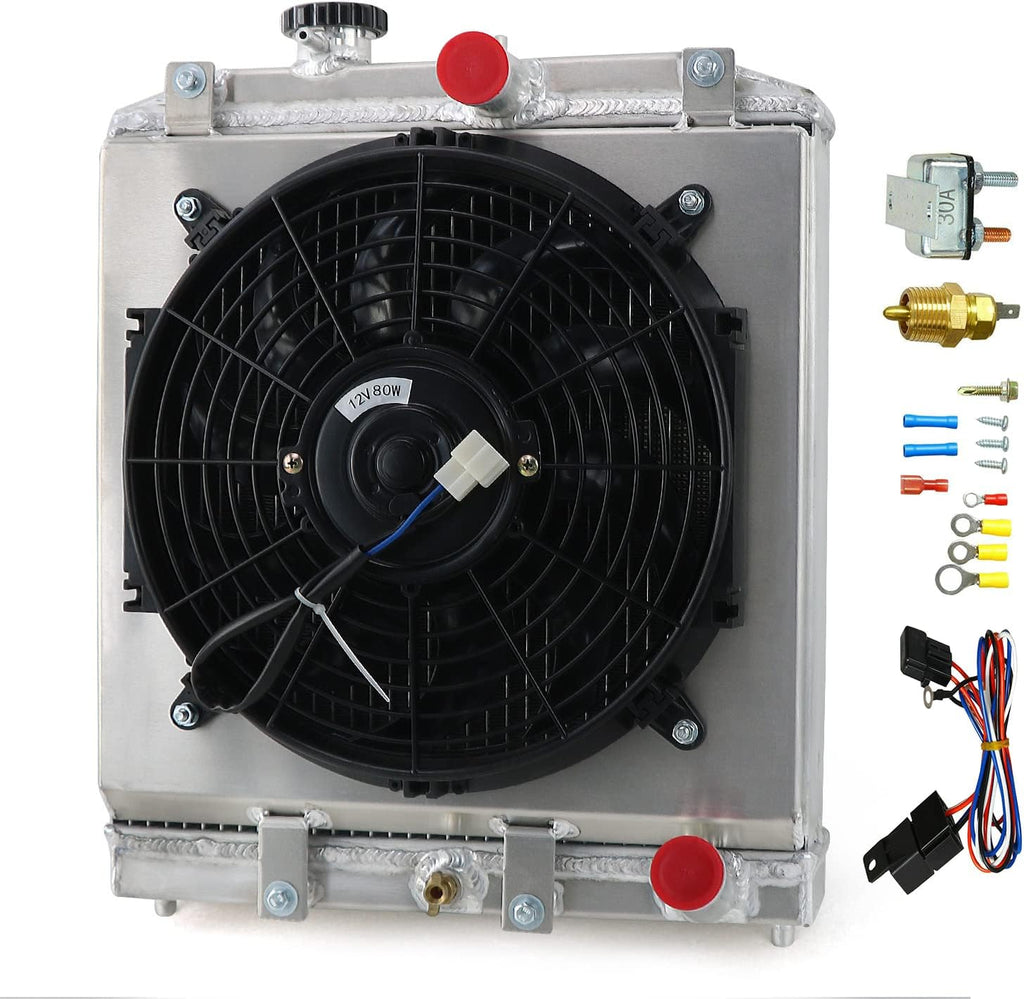

Package Include:
1 X 3-Row Aluminum Radiator (Includes Radiator Cap)
1 X Aluminum Shroud
1 X 12' Fan (Includes mounting kits)
1 X Thermostat Relay Kit

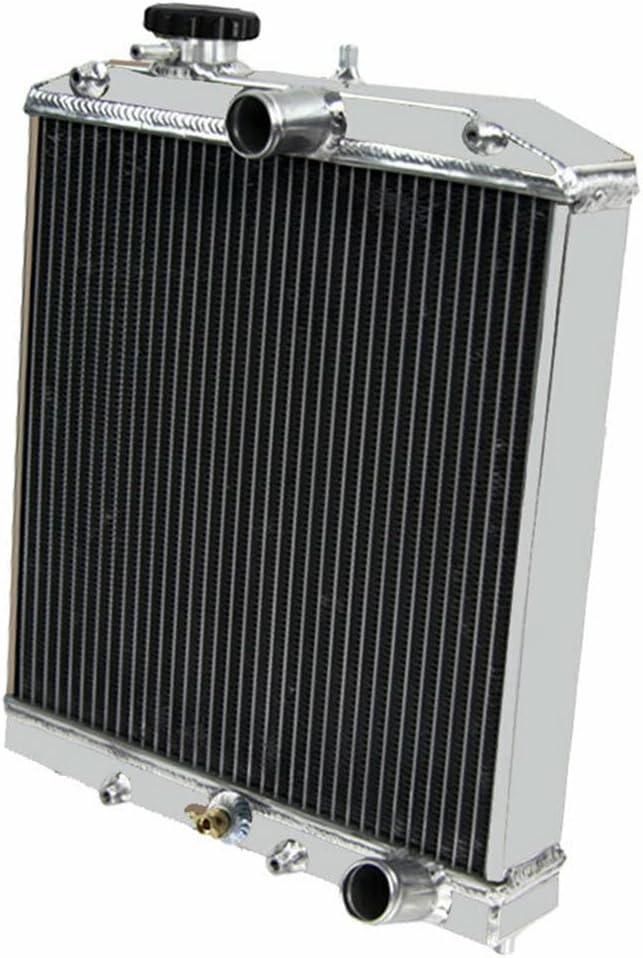

Radiator Specs:
Core Material: aluminum
Tank Material: aluminum
Core Row Quantity: 3
Core Size: 13.8’’ x 14.1’’x 1.73’’
Overall Size: 18.3’’ x 14.5’’ x 4.6’’
Inlet: 1.25’’
Outlet: 1.25’’
Inlet Location: top center
Outlet Location: bottom passenger side
Flow Type: down-flow
Radiator Cap: included
12' Fan Spec:
Maximum Fan CFM: 2300±200
FAN Diameter: 12.05' X 12.05' X 2.5'
Number of Blades: 10 blades (Plastic)
Amp Draw: 12.70 amps
Maximum Fan RPM: 2,250 rpm
Thermostat Relay Kit Instructions:
* Activates by grounding electric fans at preset temperature.
* 180'F/165'F turn on/off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
Part Number:
1290, 1328, 16010065, 1605-291870, 21099, 2273, 2274, 2504, 1290
This Radiator Compatible with:
1994-2001, Acura Integra 1.8L L4 MT
1992-1995, Honda Civic 1.5L L4 MT
1996-2000, Honda Civic 1.6L L4 MT
1993-1995, Honda Civic del Sol 1.5L L4 MT
1996-1997, Honda Civic del Sol 1.6L L4 MT
For 92-00 Honda Civic D15 D16 EK EG B16A B18C
